Hydraulic Hose Fittings: The Ultimate Guide

Hydraulic hose fittings are components in any hydraulic system, responsible for securing a leak-free connection between the hoses, pipes, and tubes.

These fittings come in a wide range of sizes and types, each designed for specific applications and pressure ratings. Understanding their functionalities and types will help you make the right choice for the operation of your hydraulic system.

What Are Hydraulic Fittings?

Hydraulic fittings are mechanical parts used to join different sections of hydraulic systems together, such as tubes, pipes, and hoses. They allow the fluid to flow seamlessly throughout the system, enabling it to function optimally.

The fittings are designed in a variety of shapes and sizes to withstand high pressures and temperature fluctuations. Different types of hydraulic hose fittings include elbow, straight, tee, and cross fittings, each serving a unique purpose in the system.

What Are Hydraulic Hose Fittings Made Of?

Hydraulic hose fittings are typically fabricated from strong, durable materials capable of withstanding high-pressure environments.

Commonly, they are made of materials like steel and stainless steel offering specific benefits such as corrosion resistance, heat tolerance, or light-weight properties.

Let’s dig deeper into the most common materials used in hydraulic fittings:

Steel Hydraulic Fittings

Steel hydraulic fittings are highly valued for their superior strength, durability and resistance to high pressures and temperatures. Often utilized in industrial settings, they are resilient against harsh environments, but may be prone to corrosion if not properly maintained or protected.

Stainless Steel Fittings

Stainless steel fittings are renowned for their exceptional corrosion resistance and strength. These fittings are often employed in applications where the hydraulic system is exposed to corrosive substances, or high levels of cleanliness are required.

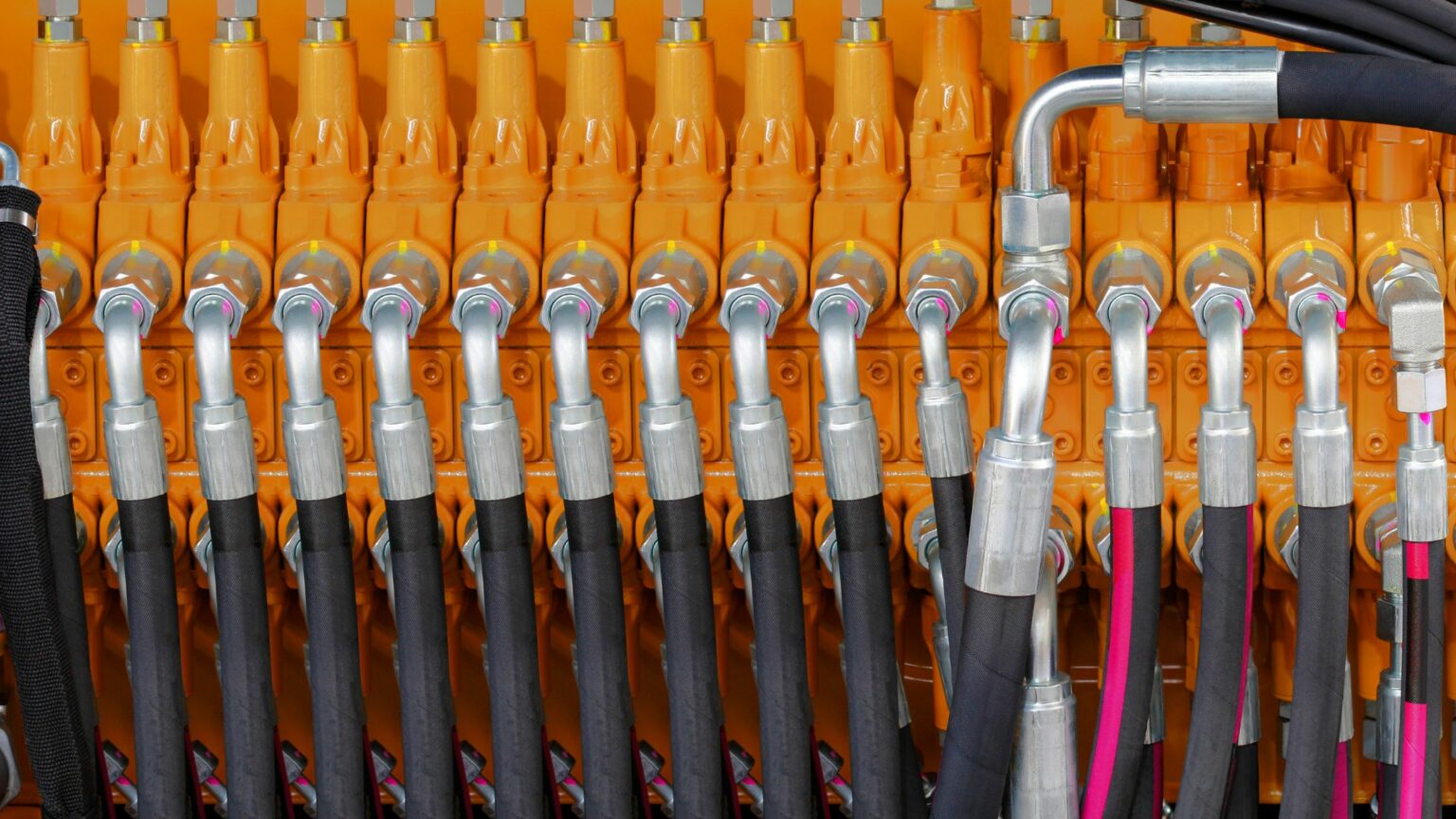

A picture of hydraulic hose fittings.

Types Of Hydraulic Fittings

There are numerous types of hydraulic fittings, but the most commonly used are elbow, straight, tee, and cross fittings. Elbow fittings change the direction of the hydraulic line, straight fittings connect two lines in a straight run, tee fittings branch the flow of fluid, and cross fittings allow for four-way directional flow. Each fitting type serves a unique purpose within the hydraulic system, ensuring optimal performance and efficiency.

Permanent Vs Field Reusable Fittings

When it comes to hydraulic fittings, one must also consider reusability. Permanent fittings, as the name suggests, are designed for one-time use and require a crimper to install.

On the other hand, field reusable fittings are designed to be assembled and disassembled multiple times using simple hand tools. While convenient, especially in a breakdown situation, they are not as robust as a permanent crimped fitting.

This flexibility makes them ideal for field service and maintenance operations. It’s key to remember that regardless of the fitting type, proper assembly is key to avoiding leaks and ensuring the overall safety and efficiency of your hydraulic system.

That said, permanent fittings hold an edge over reusable ones due to their robust and long-lasting nature. They provide superior resistance to high pressures, ensuring performance reliability and preventing premature failures. Consequently, they offer cost-effectiveness in the long run, reducing the need for frequent replacements or repairs.

Fitting Ends and Connector Types

Hydraulic fittings feature different types of ends and connectors, such as flanged ends, pipe thread connectors, and tapered thread connectors, each chosen based on the specific requirements of the hydraulic system.

Understanding these connector types is key in maintaining a safe and efficient hydraulic operation.

O-Ring Face Seal (ORFS)

ORFS fittings provide a high degree of leak-free service due to their design featuring a high-pressure O-ring.

They are broadly utilized in hydraulic applications owing to their ability to withstand high pressures and severe vibration conditions.

Examples of ORFS include Straight Thread O-Ring (STO): known for their robust and reliable sealing mechanism and use a straight thread and an O-ring for superior sealing, Elbow ORFS FittingTee ORFS Fitting and Cross ORFS Fitting

BSP hydraulic fittings

These fittings conform to BSP standards and are commonly used in high-pressure hydraulic systems due to their capability to provide a leak-free seal under extreme conditions.

Flange Fittings

These fittings are designed for high-pressure hydraulic applications and can be easily installed and removed. They are particularly valuable in larger sizes where higher pressures are necessary. Flange fittings distribute the bearing stress over a wider area, providing a secure connection that can withstand high pressures and heavy loads.

Pipe Thread Connectors

These are the most common type of hydraulic fittings used in low to medium pressure systems. Pipe thread connectors create a tight seal by the threads themselves distorting to create a seal. They are available in different types and sizes to meet various hydraulic system requirements.

Tapered Thread Connectors

These are similar to pipe thread fittings but have a taper to the threads. The taper allows the thread to form a seal as they are tightened and are often used in medium to high-pressure hydraulic systems.

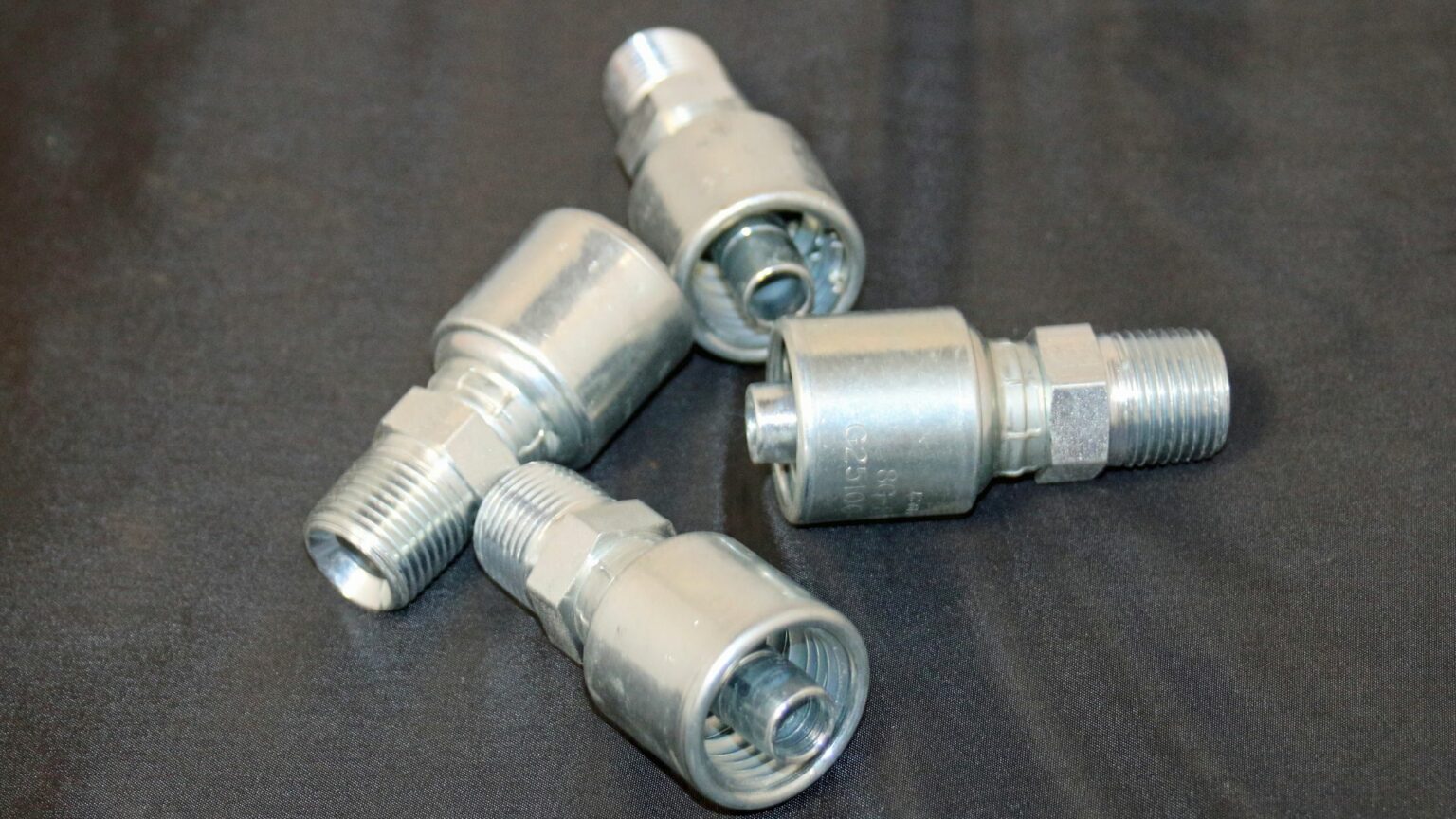

A picture of steel hydraulic hose fittings.

How to Identify Hydraulic Hose Fittings

Identifying hydraulic hose fittings can be a daunting task, especially given the wide range of types and sizes available. There are a few key factors to look out for.

Check the type of connection – whether it’s a male or female fitting, and whether it’s a straight, elbow, or tee fitting.

Match the port connection with that of the hose – consider the thread size, which should correspond with the port size to ensure a secure and leak-free connection.

Measure the dimensions of the hose fitting- this will help to ensure an accurate fit with the hydraulic system.

How Do You Choose the End Fittings for a Hydraulic Hose?

Choosing the end fittings for a hydraulic hose is a important task that can impact the performance and longevity of your hydraulic system.

Size: Size is of paramount importance when choosing the end fittings for a hydraulic hose. The fitting size must correspond to the inner diameter and outer diameter of the hose to ensure a secure and tight connection. Incorrect size can lead to leakage, reduced operational efficiency, and potential damage to the hydraulic system. Therefore, accurate measurement and selection of fitting size are important for maintaining the performance and longevity of the hydraulic system.

Material: The material of the fitting is another critical factor to consider as it must be compatible with the hydraulic fluid used and capable of withstanding operational pressures and environmental conditions.

Pressure: The pressure capacity of the fitting must align with the maximum operating pressure of the hydraulic system, ensuring optimal performance and safeguarding against failures or leaks.

Application: Considering the application is essential, as the type of fitting chosen must suit the specific demands of the hydraulic system, whether it’s a mobile hydraulic application with dynamic working conditions or a stationary one with constant conditions.

Temperature: The temperature of the hydraulic system and the surrounding environment should also be factored in, as it can significantly impact the performance and lifespan of the fitting.

Talk to a Professional

Understanding the different types of hydraulic hose fittings and their functions, as well as considering factors like size, material, and pressure capacity, can optimize the performance, safety, and longevity of your hydraulic system.

At T&T Weber Hydraulic Inc, we are dedicated to providing our clients with a comprehensive range of hydraulic hose fittings tailored to their specific needs.

Our team of experts is always ready to guide you through the selection process, ensuring you make an informed choice that maximizes system efficiency.
