Manual Valves · 2-Way · 3-Way

One handle between you and 11,700 psi.

Manual ball valves are the simplest, most reliable control in a hydraulic system: shut a circuit off, isolate it for service, or divert flow between two paths — with a quarter turn of a handle. We stock full-flow, high-pressure valves in threaded and SAE flange styles, sized ¼″ through 2″.

11,700

PSI Max Rating

¼″–2″

Size Range

9

Valve Families

Request a Quote

The Basics

Two-way or three-way?
Count the jobs, not the ports.

Every manual ball valve here does one of two jobs. A 2-way valve turns flow on and off — it’s a switch. A 3-way valve sends flow down one of two paths — it’s a railroad switch. Once you know which job you need, the rest is matching pressure, size, and connection style.

2-Way Shutoff

One in · One out · Open or closed

Quarter turn open, quarter turn closed. The handle position tells you the state at a glance — in line with the pipe is open, across it is closed.

  • Isolate a circuit or component for service
  • Shut off pump suction lines
  • Isolate gauges, accumulators, and test points
  • Emergency shutoff on a running system

3-Way Diverter

One in · Two out · Pick a path

One inlet, two outlets, and the handle decides which one gets the flow. It replaces two shutoff valves and takes the guesswork out of switching.

  • Select between two circuits sharing one pump
  • Switch a line between run and test/bypass
  • Divert flow to a second function or attachment
  • Fill-and-drain routing on reservoirs

Worth knowing: these are full-flow shutoff and diverter valves, built to run fully open or fully closed. If you need to meter or throttle flow, that’s a job for a needle or flow-control valve — we can help you spec that too.

What We Stock

Nine families, ¼″ to 2″

Threaded-port valves for general circuits, direct-mount and flanged valves for high-flow SAE connections, and an ultra high-pressure series for when the numbers get serious. All manually operated, all full flow.

2-Way · Threaded

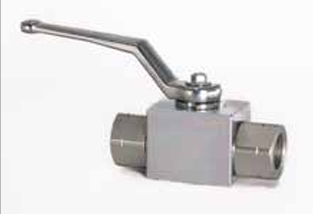

BKH Series

The everyday high-pressure shutoff. Block-body ball valves for the widest range of circuits.

6,000–7,600

PSI

¼″–1½″

Sizes
2-Way · Forged Body

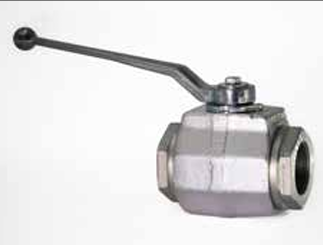

SKH Series

Forged-body shutoff valves for the larger line sizes where a block body runs out of room.

5,000

PSI

1¼″–2″

Sizes
2-Way · Ultra High Pressure

HRKH Series

When the circuit runs past what standard valves can hold — rated to 11,700 psi.

11,700

PSI

¼″–1″

Sizes
3-Way · Diverter

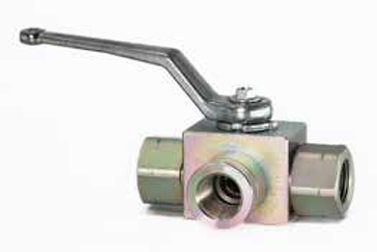

BK3 Series

Compact three-way diverters for selecting between two circuits or functions with one handle.

5,000–5,800

PSI

¼″–1″

Sizes
3-Way · Forged Body

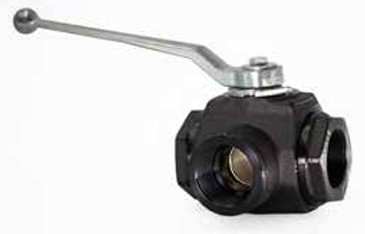

SK3 Series

Forged three-way diverters carrying the same job up into the big line sizes.

5,000

PSI

1¼″–2″

Sizes
2-Way / 3-Way · Code 62

PV2 / PV3 Series

Direct-mount valves that bolt straight to a Code 62 flange pad — no adapters, no extra leak points.

5,800

PSI

½″–2″

Sizes
2-Way · Full Flange

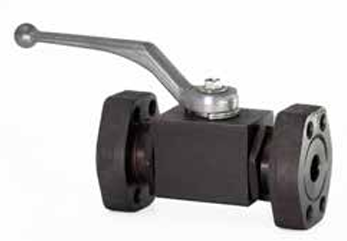

Code 61/62 Full Flange

Flange connections on both sides for high-flow lines where threaded ports won’t cut it.

2,900–5,800

PSI

½″–2″

Sizes
2-Way · Split × Full Flange

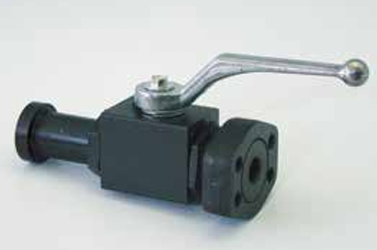

Code 61/62 Combination

Split flange one side, full flange the other — for joining the two connection styles cleanly.

2,900–5,800

PSI

½″–2″

Sizes
2-Way · Direct Mount Flanged

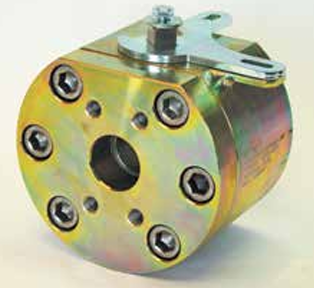

FCKH Series

Heavy direct-mount flanged valves for the biggest, hardest-working lines on the machine.

6,000

PSI

¼″–1″

Sizes

Quick Reference

Code 61 vs Code 62 — what the numbers mean

Both are SAE four-bolt flange standards, and both use the same style of split or captive flange clamps. The difference is muscle: Code 61 is the standard-pressure series, Code 62 is the high-pressure series — thicker flange heads, bigger bolts, higher ratings at the same nominal size.



The two are not interchangeable — a Code 62 head won’t land on a Code 61 pad. If you’re not sure which is on your machine, measure the bolt pattern or bring in the old valve, and we’ll match it.

Configure It Your Way

Options across the line

Most families can be built to fit the way your machine and your crew actually work.

Lock Kits

Padlockable handles for lockout/tagout — isolate a circuit and keep it isolated during service.

Actuator Packages

Mounting kits that turn a manual valve into an actuated one when a system grows past hand operation.

Handle Choices

Straight handles for tight spots, high-visibility red aluminum handles for controls that need to be found fast.

High-Temp & Aggressive Media

Special ball seats and seal compounds for hot systems and fluids that eat standard seals.

Stainless Steel

Most families available in stainless for washdown, marine, offshore, and corrosive environments.

Pilot-Operated Versions

Pilot-operated valves for circuits that need remote or automatic actuation instead of a handle.

Match It Right the First Time

Tell us the pressure, size,
and connection — we'll do the rest.

Not sure what’s on your machine? Send a photo of the old valve or bring it in. We’ll identify it, match it, and get the right valve in your hands fast.
Request a Quote
