The High-Pressure Hose Fittings Guide

In the world of hydraulic systems, high-pressure hose fittings play an instrumental role. This guide provides an outline that draws from the expertise of TT Weber Hydraulic, a leader in hydraulic solutions.

Key Takeaways

  • Recognize: High-pressure hose fittings are integral to the efficiency of hydraulic systems.
  • Differentiate: Various standards and classifications exist for these fittings, so you will need to understand the differences.
  • Select: Choosing the right fittings is fundamental for hydraulic systems to function at an optimal level.

What are High-Pressure Hose Fittings?

High-pressure hose fittings are specialized connectors that assist in the operation of hydraulic systems under high pressure. Their role is to transmit fluid securely and efficiently in hydraulic hose assemblies.

Design and Construction

These fittings are made from materials like stainless steel or high-grade alloys. They are specifically designed to handle high pressure without failure. Precision engineering ensures tight, leak-proof connections, and some fittings feature protective coatings for corrosion resistance.

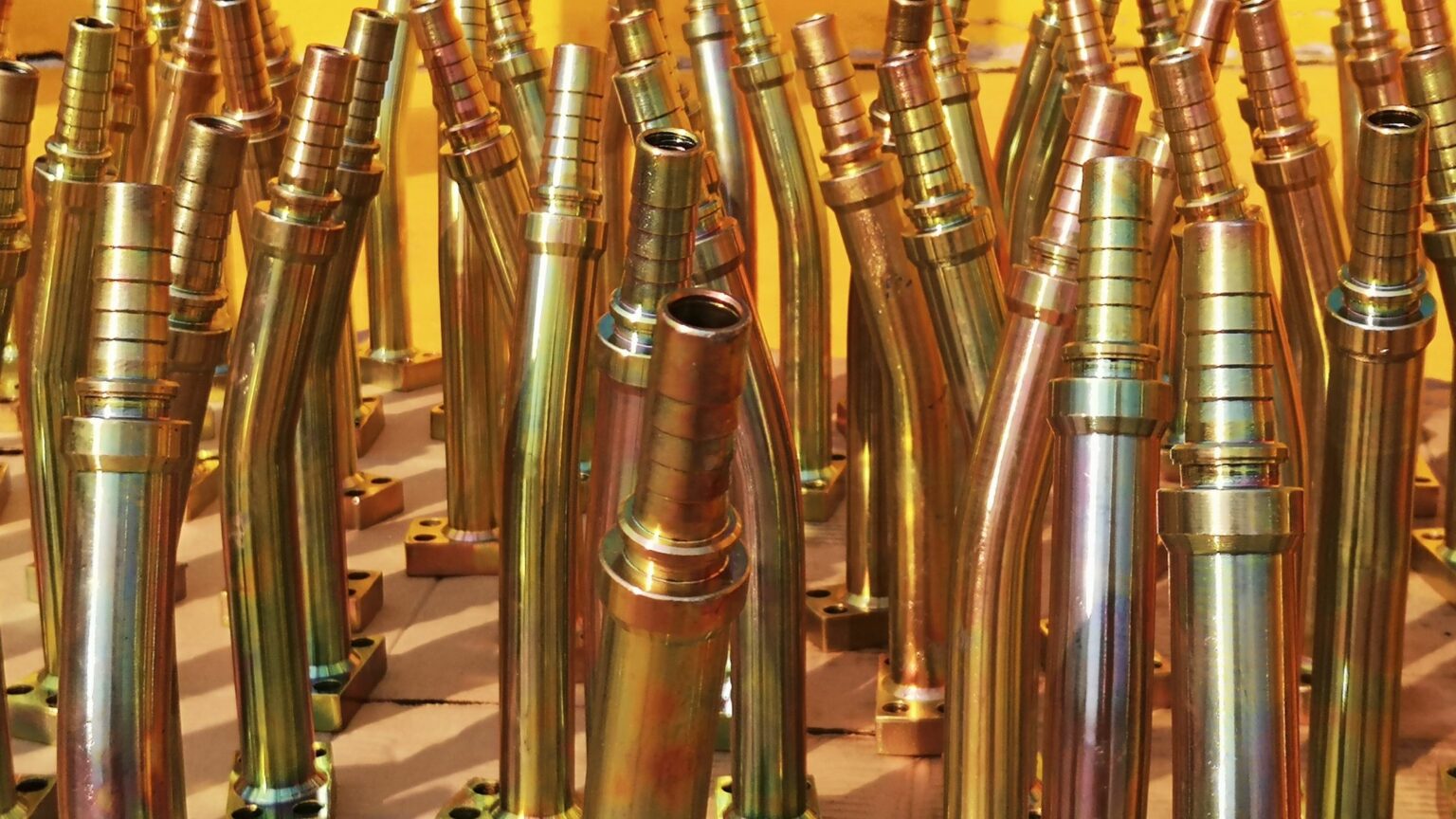

Flanged fittings lined up next to each other.

Types of High-Pressure Fittings

  • Threaded Fittings: These include NPT and BSPT fittings, commonly used for their reliable seal.
  • Flanged Fittings: Flanged fittings are suitable for larger pipes where threaded fittings are impractical.
  • Compression Fittings: A compression fitting provides a secure seal by compressing a ferrule onto the hose.
  • Quick-Disconnect Fittings: These fittings are designed for systems that require frequent hose connections and disconnections.

Importance in Hydraulic Systems

High-pressure hose fittings maintain system integrity by preventing leaks and effectively handling the high pressures that are typical of hydraulic systems. They are versatile and can adapt to various sizes and system requirements.

Application-Specific Designs

Fittings can also be custom-designed for specific applications.

Safety and Standards Compliance

These fittings adhere to industry standards for reliability and safety. They undergo rigorous testing for pressure endurance, corrosion resistance, and material strength to ensure their suitability for various applications.

In essence, high-pressure hose fittings are indispensable in maintaining the effectiveness and safety of hydraulic systems across diverse industries. Their hardy design and the variety of fitting types allow you to use them in a range of applications.

Pressure Fitting Classifications

You can classify pressure fittings according to their ability to withstand different pressure levels or PSI. Each class is tailored for specific applications and operational environments. You will choose the right fitting for various applications if you fully understand the factors of these categories.

  1. Low-Pressure Fittings:
    • Pressure Range: Typically designed for applications with pressure ranges up to 500 psi
    • Applications: Ideal for residential and light commercial plumbing, low-pressure pneumatic systems, and water distribution systems
    • Materials: Often made from materials like brass or PVC, offering a balance between strength and cost-effectiveness
    • Features: Generally have simpler sealing mechanisms and are easier to install
  2. Medium-Pressure Fittings:
    • Pressure Range: Suitable for pressure ranges between 500 and about 3,000 psi
    • Applications: Common in automotive hydraulic systems, medium-duty industrial machinery, and agricultural equipment
    • Materials: Typically made from harder metals such as steel or stainless steel to handle increased pressure without compromising integrity
    • Features: Often incorporate more robust sealing mechanisms compared to low-pressure fittings, like O-rings or metal-to-metal contact seals
  3. High-Pressure Fittings:
    • Pressure Range: Designed for systems operating over 3,000 psi (Some high-pressure fittings can handle pressures upwards of 10,000 psi or more.)
    • Applications: Essential in heavy industrial machinery, high-pressure hydraulic power systems, and in the aerospace and oil and gas industries
    • Materials: Usually made from high-strength materials like stainless steel, alloys, or specialized metals to withstand extreme pressures and harsh conditions
    • Features: Often feature advanced sealing technologies and are engineered to provide reliable connections in high-stress environments
  4. Ultra-High-Pressure Fittings:
    • Pressure Range: Specialized fittings designed for systems that operate at extremely high pressures, often exceeding 20,000 psi
    • Applications: Used in cutting-edge industrial applications, research facilities, and in certain specialized areas of the oil and gas and aerospace sectors
    • Materials: Typically constructed from highly durable materials that can withstand immense pressure and potential environmental corrosives, like advanced alloys.
    • Features: Often include precision-engineered components and may utilize unique sealing and locking mechanisms to maintain integrity under ultra-high pressures

In addition to pressure ratings, other factors play a role in determining the appropriate class of fitting, such as the type of hydraulic fluid, temperature, and environmental conditions. For instance, fittings used in outdoor or marine environments may need additional corrosion resistance, regardless of their pressure classification.

How to Choose the Right Fittings

To select the right high-pressure hose fittings, consider factors like material, size, thread type, and pressure rating. It’s required to match these factors with the specific needs of your hydraulic system. Here are several key elements to look into:

  1. Material: Choose a material based on durability and environmental conditions. Stainless steel is ideal for strength and corrosion resistance while brass is suitable for less demanding conditions. For extreme environments, materials like Monel or Hastelloy may be necessary.
  2. Size and Compatibility: Ensure the fitting size matches the hose and connecting ports. It’s vital to consider both the inner and outer diameters for a secure fit. TT Weber Hydraulic offers a variety of sizes to accommodate different systems.
  3. Thread Type: Match the thread type (e.g., NPT, BSPT, or metric) with the connecting component. Thread pitch and angle are also important for a secure, leak-free connection.
  4. Pressure Rating: The fitting should have a pressure rating that exceeds the hydraulic system’s maximum pressure to avoid failures.
  5. Media Compatibility: The fitting material must be compatible with the hydraulic fluid to prevent corrosion or degradation.
  6. Application-Specific Needs: Some applications, like food processing or medical equipment, may require specialized fittings. TT Weber Hydraulic can provide guidance for these unique requirements.

Applications of High-Pressure Fittings

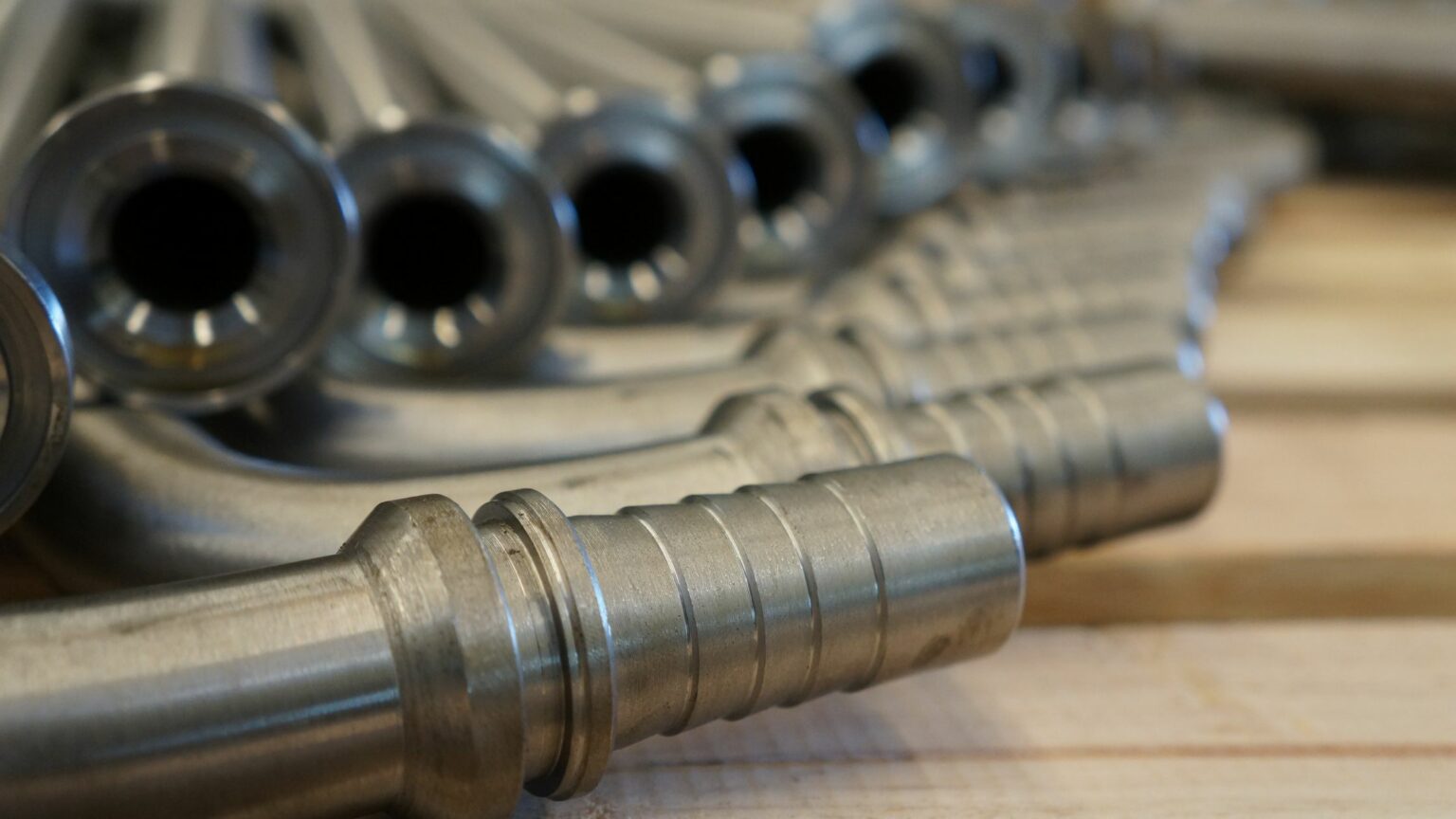

Metal Hydraulic Hose Fitting for the oil company.

High-pressure hose fittings are essential in various industries, and each has their own unique requirements:

  • Industrial Machinery: Used in construction, mining, and manufacturing for heavy machinery like cranes and presses
  • Automotive Systems: Integral in hydraulic systems for braking and power steering in vehicles
  • Aerospace Industry: Used for aircraft control surfaces, landing gear, and braking systems and requires adherence to stringent safety standards
  • Agricultural Equipment: Found in tractors and harvesters to provide durability and resistance to corrosion from chemicals and organic materials
  • Marine Applications: Used in steering, stabilizing, and lifting operations and must be resistant to saltwater corrosion and high-pressure, deep-water conditions
  • Chemical Processing Plants: Essential for handling corrosive chemicals safely in high-pressure environments
  • Oil and Gas Industry: Required in drilling, pipelines, and refineries and capable of withstanding extreme pressures and corrosive conditions
  • Power Generation: Used in hydroelectric, nuclear, and thermal power plants for controlling turbines and other mechanisms

In each of these sectors, high-pressure hose fittings must not only manage intense pressures but also withstand environmental challenges like temperature fluctuations and corrosive elements. TT Weber Hydraulic provides a diverse range of fittings suitable for every application.


Don’t underestimate the importance of high-pressure hose fittings, they are the backbone of efficient and safe hydraulic systems. The integrity and performance of your hydraulic equipment depend on the type, standard, and application of the hose fitting you choose.

TT Weber Hydraulic offers top-quality products and expertise in this field. They provide a wide variety of fittings for diverse hydraulic needs. They can help you select the right fittings and teach you how to properly maintain them.
